Product

CAPSULE FILTER

Products CAPSULE FILTER

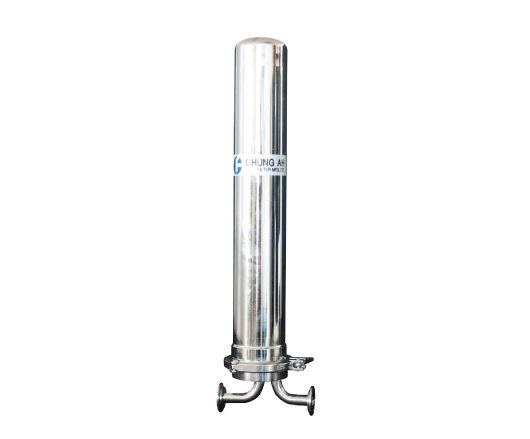

  • XWH
  • Description

    It is applicable to all XW product group, and its bowl size may vary depending on the length of the products, such as 125L, 250L, or 500L.

Applications

Solvents, Resins, Paints, Chemicals. Coatingstest

Nominal length of built-in cartridge(mm)

125, 250, 500

Materials

SUS304

Max operating pressure

100psid (6.9bar, 7kgf/c㎡)

Max temperature

60℃

In/Out Connecting diameter

1S Ferrule

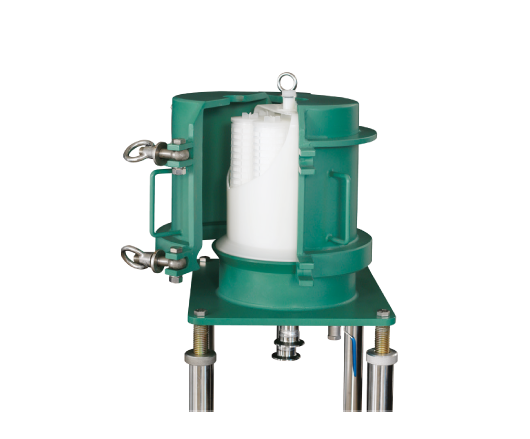

  • AWH
  • Description

    One AW product line is included, and the filter can be easily replaced by opening and closing left and right. The height of the support can be increased up to 100mm, and the head surface is coated with Teflon.

Applications

Solvents, Resins, Paints, Chemicals. Coatings, Li-ion battery(LIB), Solvents, Resins, Paints, Chemical, Coating (Hazardous material)

Nominal length of built-in cartridge(mm)

250, 500

Materials

SUS304, Teflon coating

Max operating pressure

100psid (6.9bar, 7kgf/c㎡)

Max temperature

60℃

In/Out Connecting diameter

1.5S, 2S Ferrule

Ordering Information
